SUMER Study #2227: Flare Watch 24.Sep.00

• date, time: 24.Sep.00, 14:06 - 25.Sep.00, 01:29 UT
• field of view: 980 arcsec E, 500 - 200 arcsec S
• slit: 4.0 arcsec x 300 arcsec (number 1)
• raster step size: 0.0 arcsec (0 elementary steps)
• exposure time: 162.5 seconds
• telemetry: 229 images of 512 spectral x 360 spatial pixels (format 38)
• compression: quasilog-min-max (method 5)
• wavelengths:
  1108.26 Å on reference pixel 731 of Detector A

• rotation compensation: no
• binning: no spectral, no spatial
• on-board flat field correction: no

Cont 1112 (10 000 K)

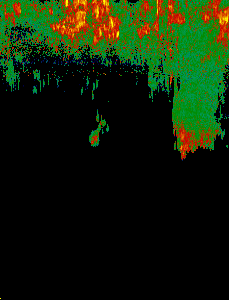

S III 1113.22 (63 000 K)

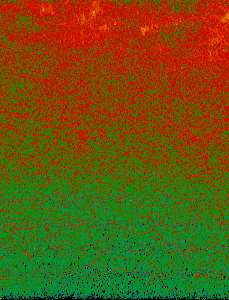

Ca X 1115.51/2 (740 000 K)

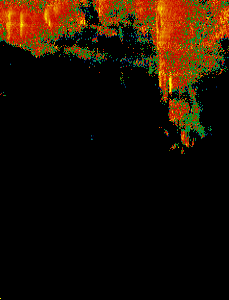

Fe XIX 1118.073 (7 700 000 K)

Fe XIX Events in SUMER Study Starting 24.Sep.00, 14:06 UT

Time  Solar X Solar Y    Intensity    Size   Shift   Width
/UT   /arcsec /arcsec   /count s-1 /arcsec /km s-1 /km s-1
----- ------- ------- ------------ ------- ------- -------
14:36    -980    -227      15.3774      49       7      60
15:11    -980    -231      12.0924      45       7      57
16:30    -980    -228      11.2714      40      17      60
22:19    -980    -245      2.61243      35      19      57
22:38    -980    -295      1.61570      25      56      84
