SUMER Study #2227: Flare Watch 30.Sep.00

• date, time: 30.Sep.00, 11:43 - 20:04 UT
• field of view: 980 arcsec E, 400 - 100 arcsec S
• slit: 4.0 arcsec x 300 arcsec (number 1)
• raster step size: 0.0 arcsec (0 elementary steps)
• exposure time: 162.5 seconds
• telemetry: 168 images of 512 spectral x 360 spatial pixels (format 38)
• compression: quasilog-min-max (method 5)
• wavelengths:
  1108.26 Å on reference pixel 731 of Detector A

• rotation compensation: no
• binning: no spectral, no spatial
• on-board flat field correction: no

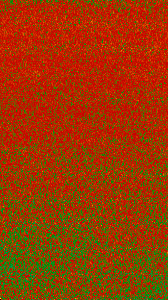

Cont 1112 (10 000 K)

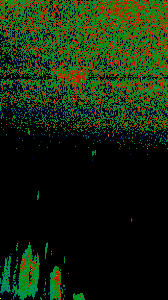

S III 1113.22 (63 000 K)

Ca X 1115.51/2 (740 000 K)

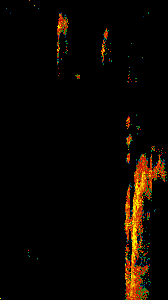

Fe XIX 1118.073 (7 700 000 K)

Fe XIX Events in SUMER Study Starting 30.Sep.00, 11:43 UT

Time  Solar X Solar Y    Intensity    Size   Shift   Width
/UT   /arcsec /arcsec   /count s-1 /arcsec /km s-1 /km s-1
----- ------- ------- ------------ ------- ------- -------
14:35    -980    -158     0.202643      28      30      62
14:46    -980    -138     0.204516      34      27      61
16:59    -980    -144     0.241060      21      28      49
18:04    -980    -263     0.262317      18      38      51
18:18    -980    -380     0.561619      27      58      56
18:21    -980    -354     0.509620      20      39      58
18:23    -980    -336     0.574545      19      32      66
18:23    -980    -317     0.535176      39      33      61
18:34    -980    -300     0.742473      23      35      61
18:51    -980    -282     0.809878      40      45      65
