SUMER Study #2229: Flare Watch 30.Sep.00

• date, time: 30.Sep.00, 20:11 - 01.Oct.00, 08:04 UT
• field of view: 980 arcsec E, 600 - 300 arcsec S
• slit: 1.0 arcsec x 300 arcsec (number 2)
• raster step size: 0.0 arcsec (0 elementary steps)
• exposure time: 162.5 seconds
• telemetry: 23 images of 1024 spectral x 360 spatial pixels (format 2)
  115 images of 512 spectral x 360 spatial pixels (format 38)
  115 images of 512 spectral x 360 spatial pixels (format 38)
• compression: quasilog-min-max (method 5)
• wavelengths:
  1108.26 Å on reference pixel 731 of Detector A (23x)
  1126.10 Å on reference pixel 327 of Detector A (115x)
  1108.26 Å on reference pixel 731 of Detector A (115x)
• rotation compensation: no
• binning: no spectral, no spatial
• on-board flat field correction: no

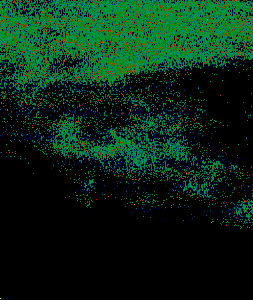

Cont 1112 / 1122 (10 000 K)

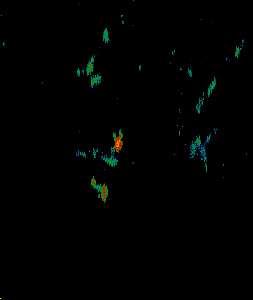

S III 1113.22 (63 000 K) / S IV 1122.52 (138 000 K)

Ca X 1115.51/2 (740 000 K)

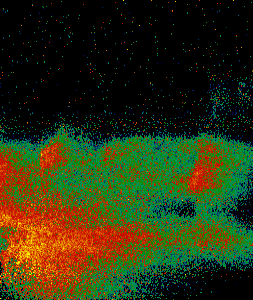

Fe XIX 1118.073 (7 700 000 K)

Fe XIX Events in SUMER Study Starting 30.Sep.00, 20:11 UT

Time  Solar X Solar Y    Intensity    Size   Shift   Width
/UT   /arcsec /arcsec   /count s-1 /arcsec /km s-1 /km s-1
----- ------- ------- ------------ ------- ------- -------
21:16    -980    -552      2.17242      43      17      58
22:21    -980    -461      2.07357      59      31      55
05:28    -980    -483      3.12802      51       6      46
