SUMER Study #2230: Flare Watch 21.Oct.00

• date, time: 21.Oct.00, 03:03 - 23:58 UT
• field of view: 1000 arcsec E, 450 - 150 arcsec S
• slit: 4.0 arcsec x 300 arcsec (number 1)
• raster step size: 0.0 arcsec (0 elementary steps)
• exposure time: 162.5 seconds
• telemetry: 40 images of 1024 spectral x 360 spatial pixels (format 2)
  202 images of 512 spectral x 360 spatial pixels (format 38)
  201 images of 512 spectral x 360 spatial pixels (format 38)
• compression: quasilog-min-max (method 5)
• wavelengths:
  1108.26 Å on reference pixel 731 of Detector A (40x)
  1126.10 Å on reference pixel 327 of Detector A (202x)
  1108.26 Å on reference pixel 731 of Detector A (201x)
• rotation compensation: no
• binning: no spectral, no spatial
• on-board flat field correction: no

Cont 1112 / 1122 (10 000 K)

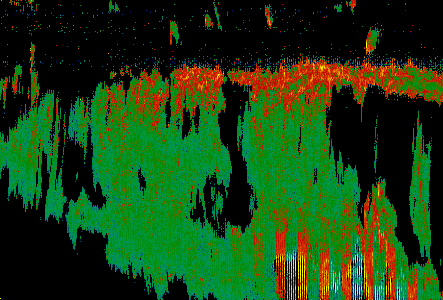

S III 1113.22 (63 000 K) / S IV 1122.52 (138 000 K)

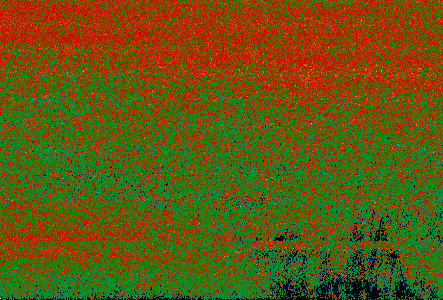

Ca X 1115.51/2 (740 000 K)

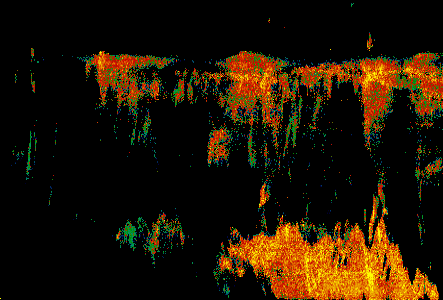

Fe XIX 1118.073 (7 700 000 K)

Fe XIX Events in SUMER Study Starting 21.Oct.00, 03:03 UT

Time  Solar X Solar Y    Intensity    Size   Shift   Width
/UT   /arcsec /arcsec   /count s-1 /arcsec /km s-1 /km s-1
----- ------- ------- ------------ ------- ------- -------
07:54    -999    -221     0.588190      29      13      57
14:27    -999    -247     0.319833      47      19      57
20:25    -999    -276     0.233697      29      11      49
20:56    -999    -226     0.531378      37       7      58
22:50    -999    -216     0.234077      21       8      54
