SUMER Study #2230: Flare Watch 23.Oct.00
- date, time: 23.Oct.00, 00:00 - 23:58 UT
- field of view: 1000 arcsec E, 450 - 150 arcsec S
- slit: 4.0 arcsec x 300 arcsec (number 1)
- raster step size: 0.0 arcsec (0 elementary steps)
- exposure time: 162.5 seconds
- telemetry: 46 images of 1024 spectral x 360 spatial pixels (format 2)
231 images of 512 spectral x 360 spatial pixels (format 38)
230 images of 512 spectral x 360 spatial pixels (format 38)
- compression: quasilog-min-max (method 5)
- wavelengths:
1108.26 Å on reference pixel 731 of Detector A (46x)
1126.10 Å on reference pixel 327 of Detector A (231x)
1108.26 Å on reference pixel 731 of Detector A (230x)
- rotation compensation: no
- binning: no spectral, no spatial
- on-board flat field correction: no
Cont 1112 / 1122 (10 000 K)

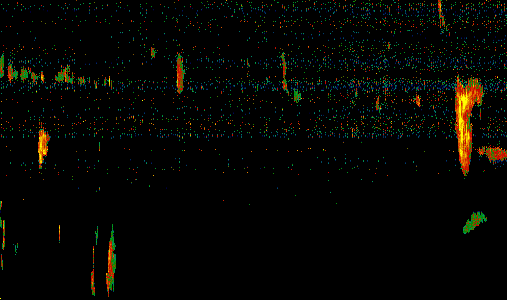

S III 1113.22 (63 000 K) / S IV 1122.52 (138 000 K)

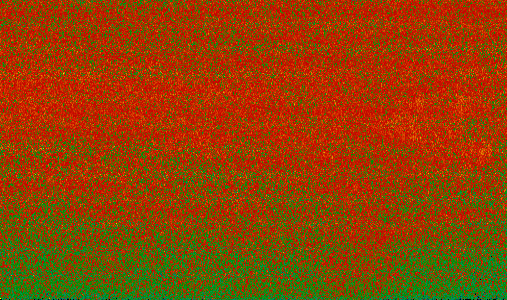

Ca X 1115.51/2 (740 000 K)

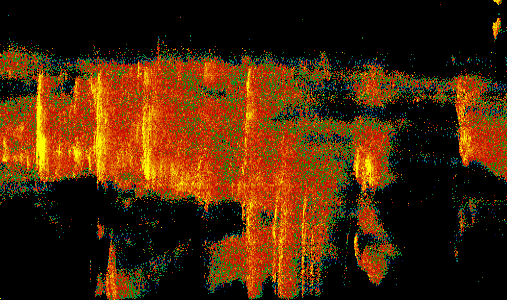

Fe XIX 1118.073 (7 700 000 K)
Fe XIX Events in SUMER Study Starting 23.Oct.00, 00:00 UT
Time Solar X Solar Y Intensity Size Shift Width
/UT /arcsec /arcsec /count s-1 /arcsec /km s-1 /km s-1
----- ------- ------- ------------ ------- ------- -------
01:50 -999 -274 2.64952 37 53 88
01:53 -999 -303 4.29219 51 57 96
01:53 -999 -241 1.58089 21 49 63
03:39 -999 -243 0.363526 18 42 61
04:41 -999 -325 1.02191 37 55 64
04:41 -999 -311 1.34294 52 27 64
04:47 -999 -248 1.06699 70 24 62
04:53 -999 -296 1.29310 37 54 68
06:54 -999 -234 0.817174 50 24 61
07:09 -999 -323 1.29702 50 27 77
09:53 -999 -228 1.16839 51 21 57
11:17 -999 -344 0.500080 40 15 56
11:46 -999 -245 0.515941 51 38 68
11:51 -999 -271 0.615684 37 20 60
16:50 -999 -396 0.515455 19 44 60
16:56 -999 -316 0.731623 52 20 62
17:30 -999 -321 0.634368 40 33 79
17:33 -999 -423 0.298403 59 30 54
22:13 -999 -305 0.838488 60 48 59
23:24 -999 -192 0.999363 34 29 58
IED, 19.Feb.02
