SUMER Study #2230: Flare Watch 24.Oct.00

• date, time: 24.Oct.00, 00:01 - 23:58 UT
• field of view: 1000 arcsec E, 450 - 150 arcsec S
• slit: 4.0 arcsec x 300 arcsec (number 1)
• raster step size: 0.0 arcsec (0 elementary steps)
• exposure time: 162.5 seconds
• telemetry: 46 images of 1024 spectral x 360 spatial pixels (format 2)
  231 images of 512 spectral x 360 spatial pixels (format 38)
  231 images of 512 spectral x 360 spatial pixels (format 38)
• compression: quasilog-min-max (method 5)
• wavelengths:
  1108.26 Å on reference pixel 731 of Detector A (46x)
  1126.10 Å on reference pixel 327 of Detector A (231x)
  1108.26 Å on reference pixel 731 of Detector A (231x)
• rotation compensation: no
• binning: no spectral, no spatial
• on-board flat field correction: no

Cont 1112 / 1122 (10 000 K)

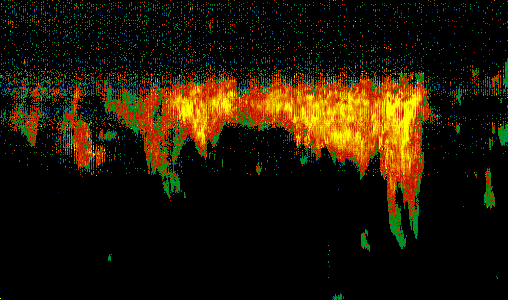

S III 1113.22 (63 000 K) / S IV 1122.52 (138 000 K)

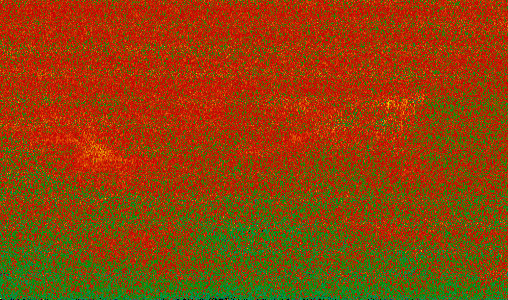

Ca X 1115.51/2 (740 000 K)

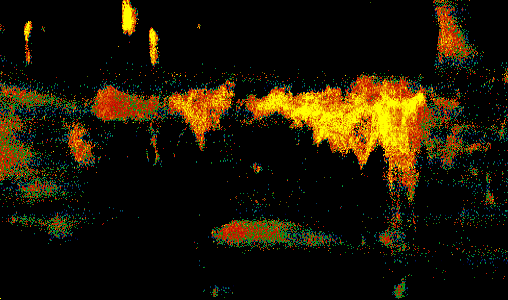

Fe XIX 1118.073 (7 700 000 K)

Fe XIX Events in SUMER Study Starting 24.Oct.00, 00:01 UT

Time  Solar X Solar Y    Intensity    Size   Shift   Width
/UT   /arcsec /arcsec   /count s-1 /arcsec /km s-1 /km s-1
----- ------- ------- ------------ ------- ------- -------
01:23    -999    -187     0.438756      26      45      75
05:05    -999    -258     0.851258      49      16      50
06:01    -999    -184      1.40768      38      38      87
07:17    -999    -213     0.230782      24      34      65
07:17    -999    -197     0.537639      23      36      73
18:12    -999    -278      2.65701      57      29      81
18:18    -999    -260      1.39259      47      16      74
