SUMER Study #2230: Flare Watch 26.Oct.00

• date, time: 26.Oct.00, 04:16 - 16:09 UT
• field of view: 1000 arcsec E, 450 - 150 arcsec S
• slit: 4.0 arcsec x 300 arcsec (number 1)
• raster step size: 0.0 arcsec (0 elementary steps)
• exposure time: 162.5 seconds
• telemetry: 23 images of 1024 spectral x 360 spatial pixels (format 2)
  115 images of 512 spectral x 360 spatial pixels (format 38)
  115 images of 512 spectral x 360 spatial pixels (format 38)
• compression: quasilog-min-max (method 5)
• wavelengths:
  1108.26 Å on reference pixel 731 of Detector A (23x)
  1126.10 Å on reference pixel 327 of Detector A (115x)
  1108.26 Å on reference pixel 731 of Detector A (115x)
• rotation compensation: no
• binning: no spectral, no spatial
• on-board flat field correction: no

Cont 1112 / 1122 (10 000 K)

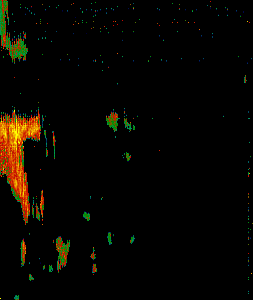

S III 1113.22 (63 000 K) / S IV 1122.52 (138 000 K)

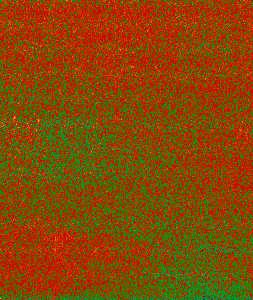

Ca X 1115.51/2 (740 000 K)

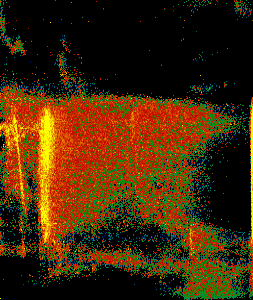

Fe XIX 1118.073 (7 700 000 K)

Fe XIX Events in SUMER Study Starting 26.Oct.00, 04:16 UT

Time  Solar X Solar Y    Intensity    Size   Shift   Width
/UT   /arcsec /arcsec   /count s-1 /arcsec /km s-1 /km s-1
----- ------- ------- ------------ ------- ------- -------
04:55    -999    -277     0.554156      38      17      65
06:15    -999    -358     0.862534      23      35      63
06:20    -999    -307      1.04127      46      20      76
06:23    -999    -389     0.580425      27      40      66
10:29    -999    -277     0.517488      69       8      51
