Equatorial stripes
For a selected number of full disks,
the following images show the overlap at the equator of two consecutive scans.
The lower stripe in each pair is always scanned first (from right to left),
then the upper stripe is scanned (from left to right).
Images are scaled to the right proportion.
The lower pair is taken as scanned.
In the upper pair, the offset caused by solar rotation is corrected relative
to the time when the left edge of both stripes was reached.
The overlap varies from 22" to 31", depending on the size and position of the
slit image on the detector.
Scan time varies because of different raster step size and exposure time.
Between the pairs, the small ticks mark 10" spatial distance.
Two stripes are added that are sampled further north, thereby crossing an active
region (C III and Ne VIII). In these cases, the lower stripe is again scanned
first, but from left to right, then the upper stripe is scanned from right to
left. In the upper pair, the rotational offset is corrected relative to the
time when the right edge of both stripes was reached; temporal distance
running from right to left is reflected by negative numbers.
This overview image shows the stripes that are compared, the scan direction,
the turning points and the time in UT of 29 Jan 1996, for the case of C III 977.

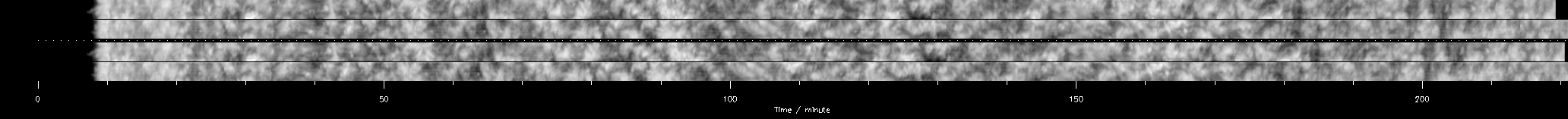

C III 977
lower: 29 Jan 96, 07:42-11:23 UT, upper: 29 Jan 96, 11:23-15:04 UT

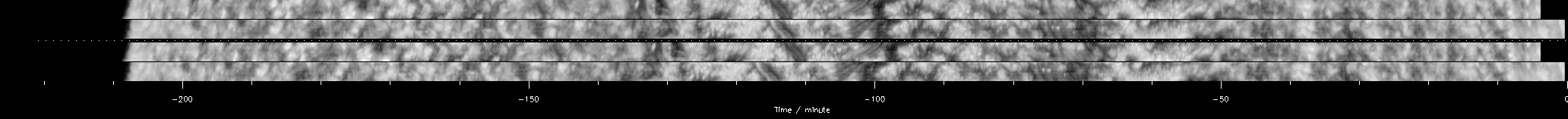

C III 977 (north)
lower: 29 Jan 96, 11:23-15:04 UT, upper: 29 Jan 96, 15:05-18:39 UT

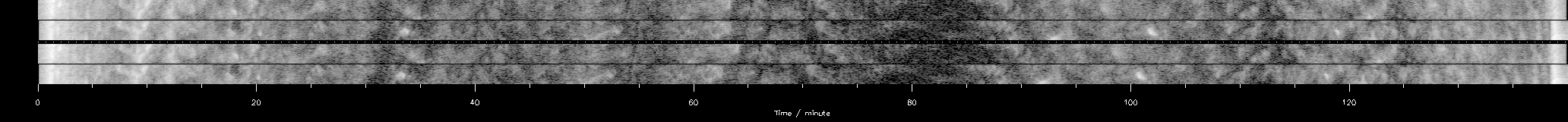

Ne VIII 770
lower: 02 Feb 96, 07:48-10:08 UT, upper: 02 Feb 96, 10:09-12:29 UT

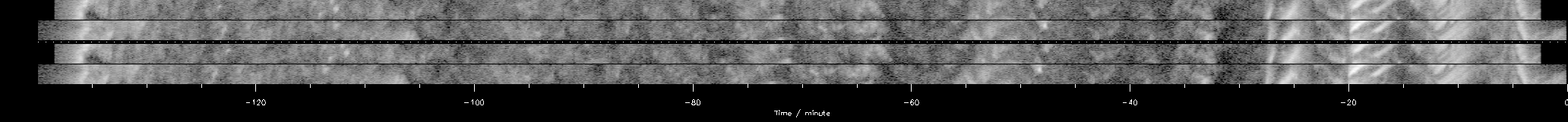

Ne VIII 770 (north)
lower: 02 Feb 96, 10:09-12:29 UT, upper: 02 Feb 96, 12:29-14:45 UT
C IV 1548
lower: 04 Feb 96, 13:19-17:53 UT, upper: 04 Feb 96, 17:53-22:28 UT

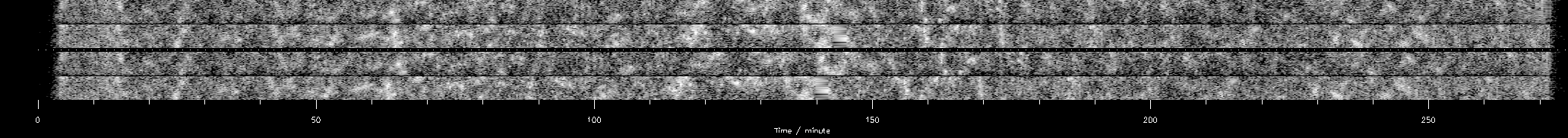

Cont 1549
lower: 04 Feb 96, 13:19-17:53 UT, upper: 04 Feb 96, 17:53-22:28 UT

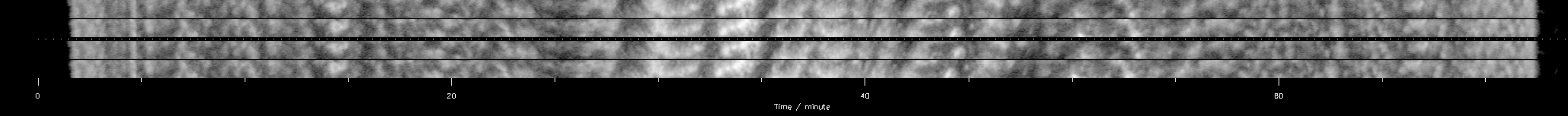

H I Ly e 937
lower: 13 May 96, 02:03-03:17 UT, upper: 13 May 96, 03:17-04:31 UT

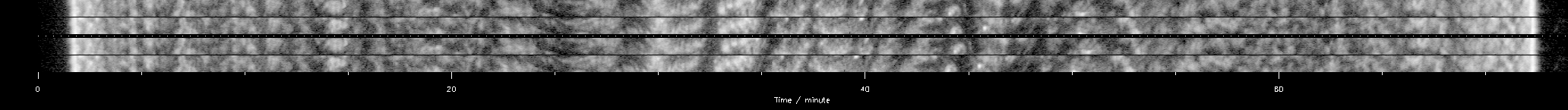

S VI 933
lower: 13 May 96, 02:03-03:17 UT, upper: 13 May 96, 03:17-04:31 UT

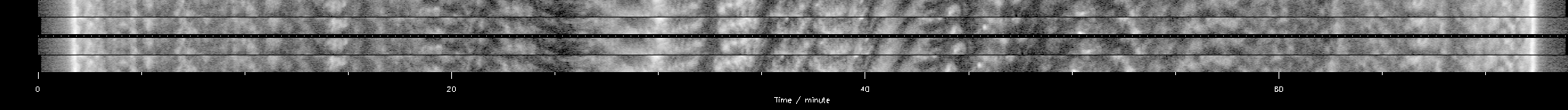

S VI (+ Si VIII) 944
lower: 13 May 96, 02:03-03:17 UT, upper: 13 May 96, 03:17-04:31 UT

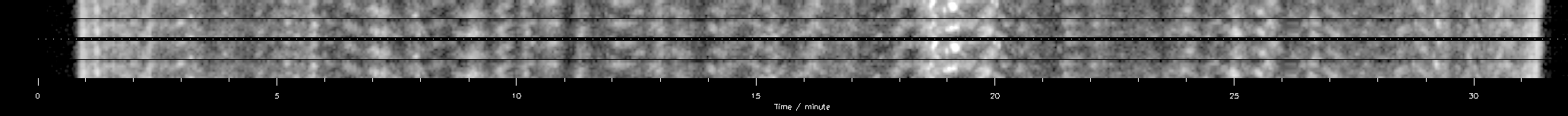

C IV 1548
lower: 07 Jun 96, 17:09-17:41 UT, upper: 07 Jun 96, 17:41-18:13 UT
O IV 787
lower: 07 Jun 96, 17:09-17:41 UT, upper: 07 Jun 96, 17:41-18:13 UT

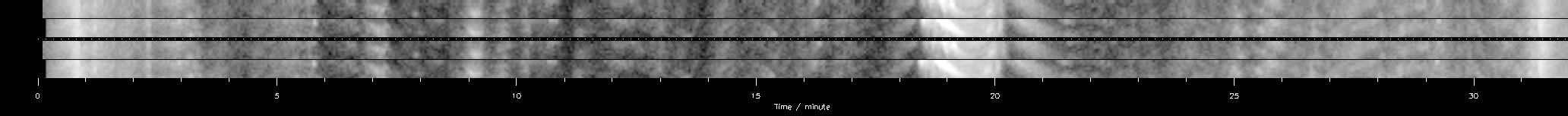

Ne VIII 770
lower: 07 Jun 96, 17:09-17:41 UT, upper: 07 Jun 96, 17:41-18:13 UT

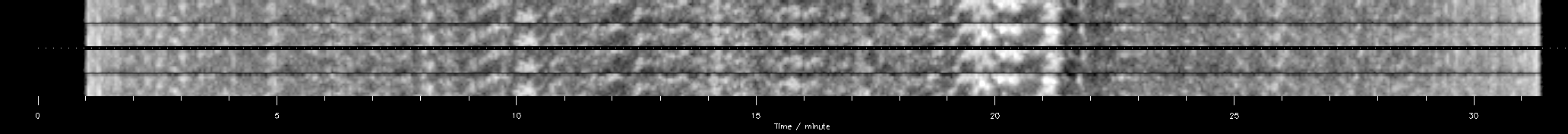

Si I 1256
lower: 08 Jun 96, 00:59-01:32 UT, upper: 08 Jun 96, 01:32-02:04 UT

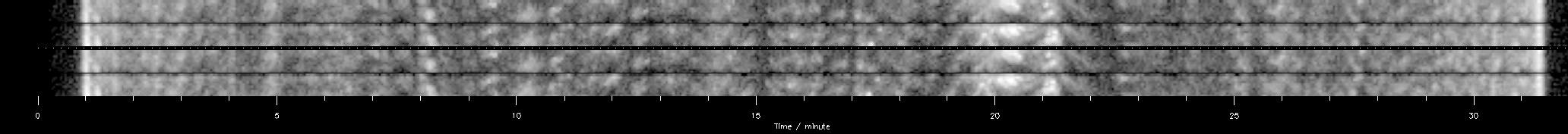

N V 1238
lower: 08 Jun 96, 00:59-01:32 UT, upper: 08 Jun 96, 01:32-02:04 UT

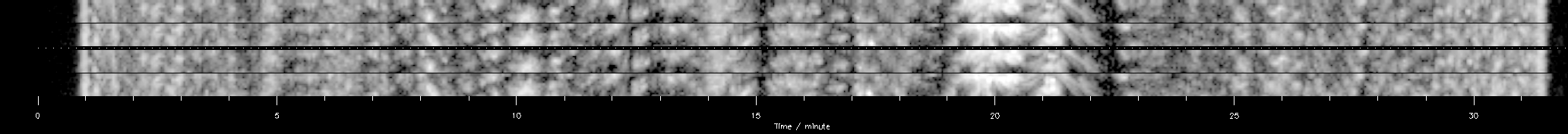

O V 629
lower: 08 Jun 96, 00:59-01:32 UT, upper: 08 Jun 96, 01:32-02:04 UT

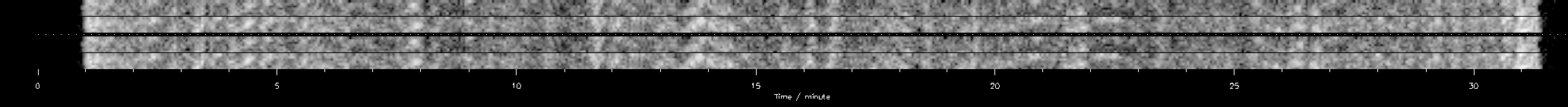

Fe II 1559
lower: 15 Jun 96, 13:36-14:09 UT, upper: 15 Jun 96, 14:09-14:41 UT

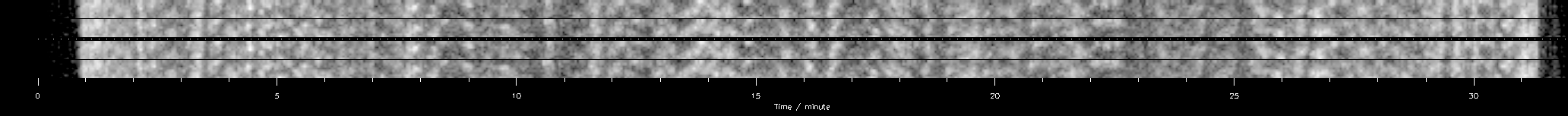

O IV 787
lower: 15 Jun 96, 13:36-14:09 UT, upper: 15 Jun 96, 14:09-14:41 UT
S V 786
lower: 15 Jun 96, 13:36-14:09 UT, upper: 15 Jun 96, 14:09-14:41 UT
IED, 05 Jun 02
